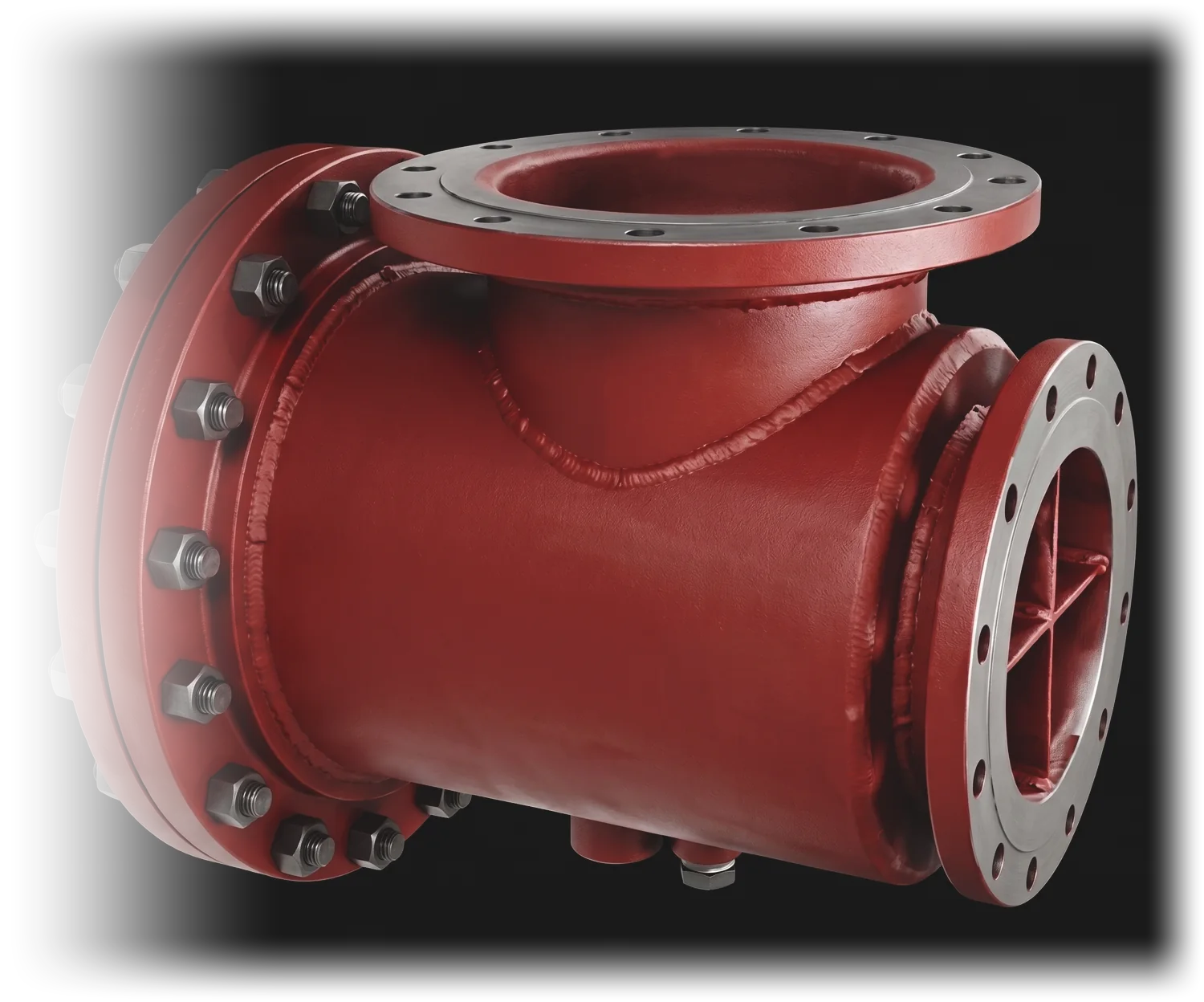

Hydrotherms suction diffuser — product image to follow
Hydrotherms

Suction Diffuser

Pump-suction protection and flow conditioning in one body — replacing the elbow, strainer and extended entry pipe.

Size
2″×2″ – 42″×42″
Pressure
ANSI 150# – 600#
Ends
FLG · BW
42″
Maximum Size
600#
Fabricated Max Class
300#
Cast Max Class
2
Flow Path Options
Pump Protection

Overview

Suction diffusers are installed on the suction side of pumps to protect against damage from debris and foreign matter, and to optimise flow efficiency. They mount to the suction side of a pump in either a horizontal or vertical position.

The Hydrotherms suction diffuser / suction guide design saves space and reduces installation cost by replacing a long radius elbow, strainer and extended entry pipe on the suction side of the pump. Flow stabilising vanes on the outlet reduce turbulence and the resulting stress and vibration. Hydrotherms provides a suction diffuser of minimal pressure drop with its oversized body and screen, normally supplied with a 20 mesh 304 stainless steel removable start-up sleeve to help promote a cleaner, more trouble-free system.

Specifications

Size & Range

Cast Suction Diffusers
  • Flanged: 2″ × 1¼″ (50 mm × 32 mm) to 12″ × 12″ (300 mm × 300 mm)
  • Pressure rating: ANSI Class 150# to ANSI Class 300#
Fabricated Suction Diffusers
  • Flanged: 2″ × 2″ (50 mm × 50 mm) to 42″ × 42″ (1000 mm × 1000 mm)
  • Pressure rating: ANSI Class 150# to ANSI Class 600#
  • A comprehensive range of flanges is available in accordance with all other international standards including BS 4504, BS 10, ANSI B16.5, ANSI B16.47 Series A and B, ASME, EN 1092, DIN, JIS and ISO

Consult Hydrotherms for other end connections and standards.

Engineering

Features

Fabricated heavy-duty construction
Vertical or horizontal orientation
Flexibility of flow with both 90 and 180 degree paths available
End connections flanged and butt weld
Convoluted screen for more surface area with perforations from 1/16″ to 1/2″
Low pressure loss
Welding carried out to ASME IX
NDE carried out to code requirements
Standard stainless-steel screens
Configure

Options

Access & Nozzles

  • Rotated or offset nozzle placement
  • Vent valves and drain valves

Screen & Basket

  • Pleated baskets for higher open area ratios
  • Wedge wire screens
  • Perforated stainless steel screens — 1/32″ to ½″
  • 20, 40, 60, 80, 100, 150, 200, 325 and 400 mesh stainless steel screens
  • Monel and Hastelloy C baskets
  • Special gasket, special screen

Instrumentation

  • Pressure differential gauge and switches

Construction & Finish

  • High-pressure capabilities
  • Steam jacket for highly viscous fluids
  • Special external / internal coatings available upon request
  • Zinc anodes for saltwater service
  • Viton, PTFE-encapsulated or EPDM seals
Quality Assurance

Certifications

Material certification to EN 10204, with NACE MR0175 / ISO 15156 compliance for sour service, and a full suite of additional testing available on request.

CertificationService Condition
Standard service

Supplied as standard on all Hydrotherms strainers. Certifies that pressure-wetted components meet the specified material standard, validated by the manufacturer's authorised inspection representative independent of the manufacturing department.

Critical service

For applications demanding the highest level of assurance, certification is countersigned by an independent third-party inspector or the customer's authorised representative, providing an additional layer of verification.

Sour service — H₂S present

Where hydrogen sulfide is present, materials comply fully with NACE MR0175 / ISO 15156 — governing hardness limits, heat treatment and alloy composition across every pressure-wetted component: body, cover, screen, bolting and sealing elements. Eliminates the risk of sulphide stress cracking (SSC), hydrogen induced cracking (HIC) and SOHIC.

Sour · critical · offshore

The most demanding sour-service specification: independent third-party verification combined with full NACE compliance, for offshore, regulated upstream oil & gas, sour gas processing, amine treating and LNG applications.

Additional Testing & Certificates

Beyond the standard hydrostatic test, Hydrotherms can perform the following examinations and supply the corresponding certificates on request. Select a test to read its scope.

Every Hydrotherms strainer is hydrostatically tested to 1.5 times the maximum allowable working pressure (MAWP) prior to despatch, in accordance with ASME Section VIII requirements. Shell integrity, joint tightness, and cover seal performance are verified under sustained test pressure. A formal hydrostatic test certificate — recording test medium, test pressure, hold duration, and witnessed result — is issued as a standard deliverable with every order, with no exceptions.

Performed using compressed air or inert gas (typically nitrogen) in lieu of hydrostatic testing, where water contact is undesirable or impractical. Used to verify pressure integrity and leak-tightness. Conducted at agreed test pressures per applicable code requirements, with all safety precautions for pneumatic testing in place.

Measures the differential pressure loss across the strainer at specified flow rates and fluid conditions. Results confirm that the strainer meets the pressure drop requirements of the system design and provides a baseline for future fouling monitoring in service.

The most sensitive leak detection method available. Helium is used as a tracer gas and detected by a mass spectrometer leak detector, capable of identifying leakage rates as low as 1×10⁻⁹ mbar·l/s. Specified for critical applications including cryogenic, toxic fluid, high-vacuum, and semiconductor services.

The strainer is pressurised to destruction to determine its actual burst pressure and failure mode. Confirms that the design safety margin exceeds the minimum required factor and validates finite element analysis (FEA) predictions. Typically performed on prototype or first-article samples.

Simulates pressure surge (water hammer) conditions to verify that the strainer body, cover, and screen withstand transient peak pressure events without deformation or leakage. Critical for pump discharge and fast-acting valve installations.

X-ray or gamma-ray examination of welds and castings to detect internal discontinuities including porosity, slag inclusions, lack of fusion, and cracks — defects that are invisible to surface examination. Conducted and reported in accordance with ASME Section V and the applicable acceptance criteria of ASME Section VIII.

Detects surface and near-surface discontinuities in ferromagnetic materials by applying magnetic flux and iron particle media. Reveals cracks, laps, seams, and inclusions that could compromise the integrity of weld joints or base material. Performed to ASME Section V, Article 7.

A liquid penetrant is applied to the cleaned surface, drawn into surface-breaking defects by capillary action, and subsequently revealed by a developer. Applicable to all non-porous materials including stainless steel, duplex, and nickel alloys where magnetic particle testing is not feasible. Performed to ASME Section V, Article 6.

High-frequency sound waves are used to detect internal and surface flaws in welds and base material, and to measure wall thickness. Particularly effective for detecting planar defects such as lack of fusion and cracks. Also used for thickness measurement on castings and formed components where dimensional access is restricted.

A chemical surface test used to detect free iron contamination on stainless steel components. A ferroxyl reagent solution is applied to the surface; any free iron deposits turn blue, confirming the presence of contamination that could initiate corrosion in service. Mandatory for many food, pharmaceutical, and high-purity stainless steel applications.

Tensile test specimens are machined from the same heat of material as the strainer components and tested to determine yield strength, ultimate tensile strength, and elongation. Results confirm that the material meets the minimum mechanical property requirements of the specified material standard and design code.

Brinell, Rockwell, or Vickers hardness measurements are taken on base material, weld metal, and heat-affected zones. Hardness testing is mandatory for all NACE MR0175 / ISO 15156 applications to confirm that material hardness does not exceed the limits above which sulphide stress cracking can occur. Also used to verify post-weld heat treatment (PWHT) effectiveness.

Charpy V-notch impact tests are performed at the minimum design temperature (MDT) to verify that materials possess adequate notch toughness and resistance to brittle fracture. Required by ASME Section VIII for low-temperature carbon steel (LTCS) applications and for all materials used below −29°C. Results must meet the minimum absorbed energy values specified by the design code.

Electrical resistance strain gauges are bonded to the strainer body at critical stress locations. Actual surface strains are measured under defined pressure and load conditions and compared against design predictions. Used to validate FEA models and confirm structural adequacy for non-standard geometries or extreme service conditions.

A brittle lacquer coating is applied to the component surface. Under applied load, the coating cracks at yield locations, visually mapping the strain distribution and identifying stress concentration areas. Provides a full-field indication of stress patterns that complements strain-gauge point measurements.

Pressure and leak testing performed at cryogenic temperatures — typically down to −196°C for LNG and liquid nitrogen service. Confirms that all materials, welds, seals, and fasteners maintain their mechanical properties and leak-tight integrity at the extreme low temperatures encountered in LNG, cryogenic processing, and cold box applications.

Evaluates structural integrity under sudden mechanical shock loads — including those resulting from water hammer, seismic events, or transportation impacts. Required for naval, offshore, and seismically active installation sites.

Subjects the strainer to defined vibration profiles to verify that connections, fasteners, and screen elements remain secure under continuous operational vibration. Particularly relevant for strainers installed on or near rotating equipment such as pumps, compressors, and turbines.

Functional operation tests to verify that all moving components — including covers, quick-opening closures, diverter valves (duplex strainers), and access flanges — operate correctly, smoothly, and within the required torque or force limits. Confirms ease of maintenance and correct mechanical assembly prior to despatch.

Tensile or bent-beam specimens are exposed to a defined H₂S-saturated test solution at controlled stress levels to evaluate susceptibility to sulphide stress cracking (SSC) — a form of hydrogen embrittlement that affects high-strength steels in sour environments. Performed in accordance with NACE TM0177 methods. Required on critical sour service components to provide independent confirmation of SSC resistance beyond hardness compliance alone.

Plate specimens are immersed in a standard H₂S test solution per NACE TM0284 to evaluate susceptibility to hydrogen induced cracking (HIC) — step-wise cracking caused by hydrogen diffusion into the steel microstructure. Crack length ratio (CLR), crack thickness ratio (CTR), and crack sensitivity ratio (CSR) are measured and reported. Required for carbon steel pressure vessels and piping components in wet sour service per NACE MR0175 / ISO 15156.

Documents

Resources

Get in Touch

Connect

Answers

Frequently Asked Questions

A suction diffuser is installed on the suction side of a pump to protect it from debris and foreign matter while optimising flow efficiency. It combines the function of a long radius elbow, a strainer and an extended entry pipe in a single body, and can be mounted horizontally or vertically.

Because one component replaces a long radius elbow, a separate strainer and the extended straight entry pipe normally required upstream of a pump, it saves space in the pump room and reduces both material and installation cost.

Flow stabilising vanes on the outlet reduce turbulence entering the pump suction, which reduces the resulting stress and vibration on the pump.

Suction diffusers are normally supplied with a 20 mesh 304 stainless steel removable start-up sleeve. It captures construction debris during commissioning and is then removed, helping promote a cleaner and more trouble-free system.

Cast suction diffusers are available flanged from 2″ × 1¼″ (50 mm × 32 mm) to 12″ × 12″ (300 mm × 300 mm) in ANSI Class 150# to 300#. Fabricated suction diffusers are available from 2″ × 2″ (50 mm × 50 mm) to 42″ × 42″ in ANSI Class 150# to 600#.

Zinc anodes are available as an option for saltwater service, and special external or internal coatings can be supplied on request. Material selection should be confirmed against the fluid, temperature and corrosion requirements of the project.
